| run |
sample
(100 ps) |
dante
(100 ps) |
sample
(1 ns) |
dante
(1 ns) |

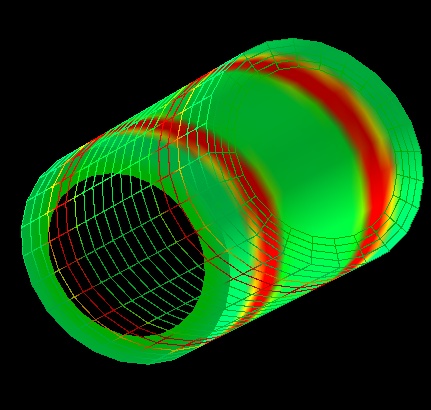

| hohlraum: cones 2,3 | 135 | 143 | 190 | 202 |

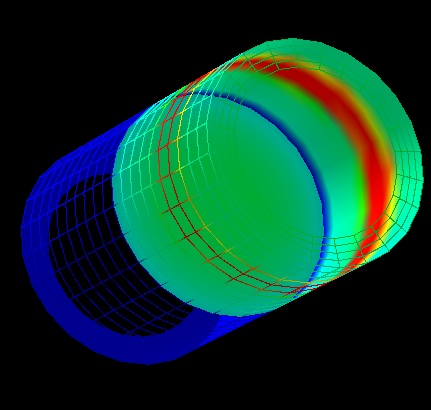

| halfraum: cones 2,3 | 134 | 137 | 186 | 193 |

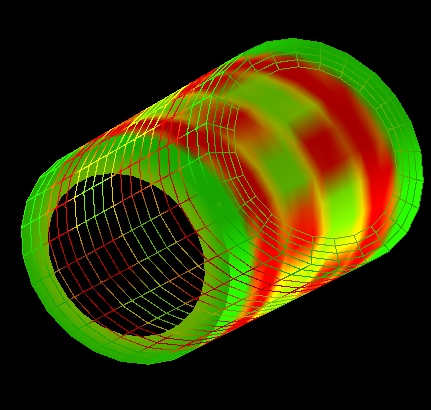

| hohlraum: cones 1,2,3 | 144 | 156 | 204 | 221 |

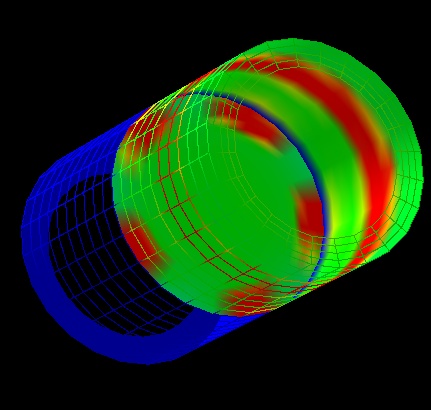

| halfraum: cones 1,2,3 | 136 | 151 | 194 | 211 |
Note: Cone 1 beams are pointed 640 microns outside the LEH, and focused 1000 microns closer to TCC than they are pointed. Emission temperature color scale is the same for all four figures (min=140eV, max=220eV).
