Comparison of radiation temperatures with and without capsule for simulations of Decker et al. shots

The beam pointing is "nominal" - i.e. 15 Cone 2 and Cone 3 beams on each side of the hohlraum, pointed and focused at the LEH center, thus producing two rings*

run sample
(100 ps)
dante
(100 ps)
sample
(1 ns)
dante
(1 ns)
No Capsule 135 147 193 207
Capsule 133 147 186 202

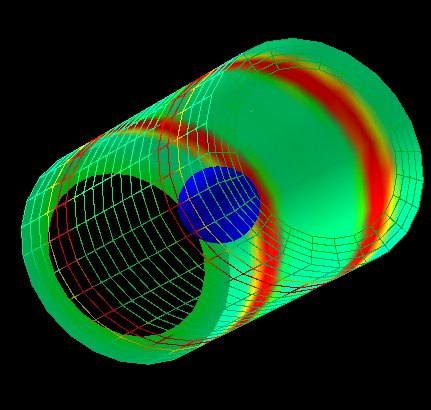

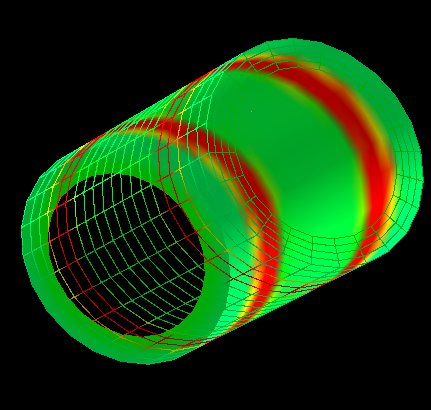

Snapshots shown here are DANTE-view at 1 ns.
Capsule has a constant 520 μm diameter and a constant albedo of α=0.3 in these simulations.
Emission temperature color scale is the same for both figures (min=140eV, max=220eV).

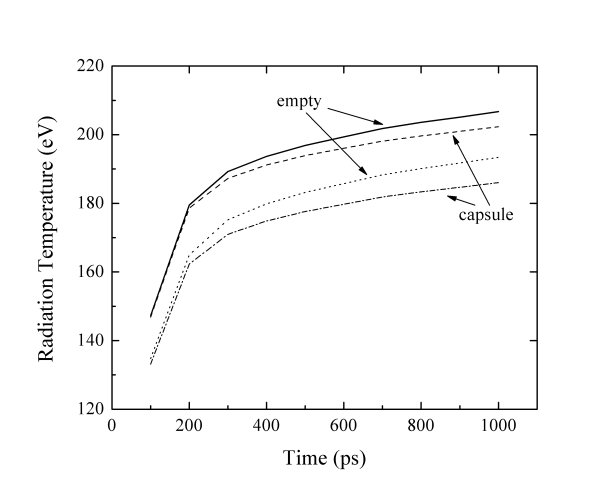

Comparison of empty hohlraum and hohlraum with capsule: Dante temperature (two higher curves) and midplane wall-mounted sample radiation temperature (two lower curves).



Radiation temperature vs. time for an empty hohlraum compared to a hohlraum with a capsule, as seen by DANTE (solid line for the empty hohlraum and dotted line for the capsule-filled hohlraum) and the midplane wall-mounted sample (dashed line for the empty hohlraum and dash-dotted line for the capsule-filled hohlraum).



New - October 12, 2004:

The beam pointing is as in Decker et al. - i.e. 15 Cone 2 and Cone 3 beams on each side of the hohlraum, pointed and focused so as to produce a single ring.

run sample
(100 ps)
dante
(100 ps)
sample
(1 ns)
dante
(1 ns)
No Capsule 129 143 188 202
Capsule 129 139 182 196

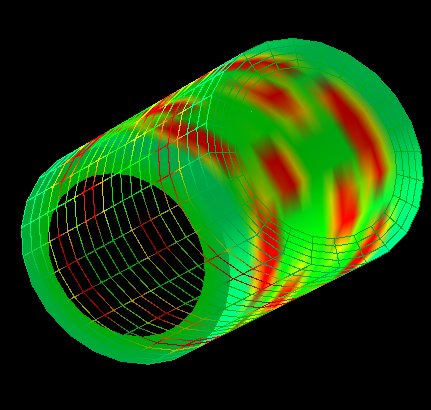

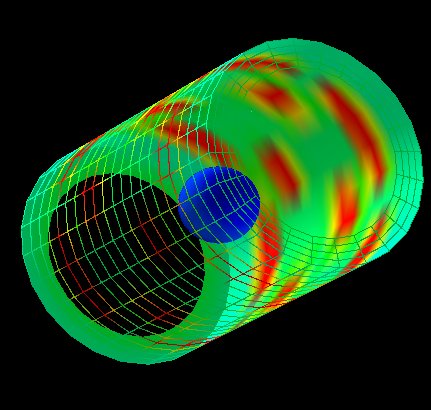

Snapshots shown here are DANTE-view at 1 ns.
Capsule has a constant 520 μm diameter and a constant albedo of α=0.3 in these simulations.
Emission temperature color scale is the same for both figures (min=140 eV, max=220 eV).

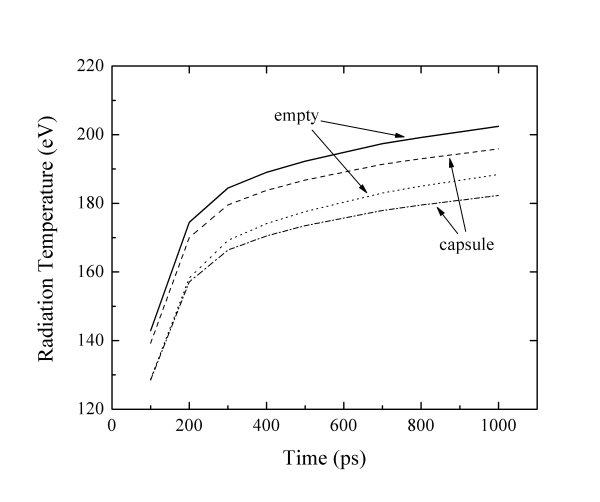

Comparison of empty hohlraum and hohlraum with capsule: Dante temperature (two higher curves) and midplane wall-mounted sample radiation temperature (two lower curves).



Radiation temperature vs. time for an empty hohlraum compared to a hohlraum with a capsule, as seen by DANTE (solid line for the empty hohlraum and dotted line for the capsule-filled hohlraum) and the midplane wall-mounted sample (dashed line for the empty hohlraum and dash-dotted line for the capsule-filled hohlraum).




last updated: October 12, 2004 by David Cohen
